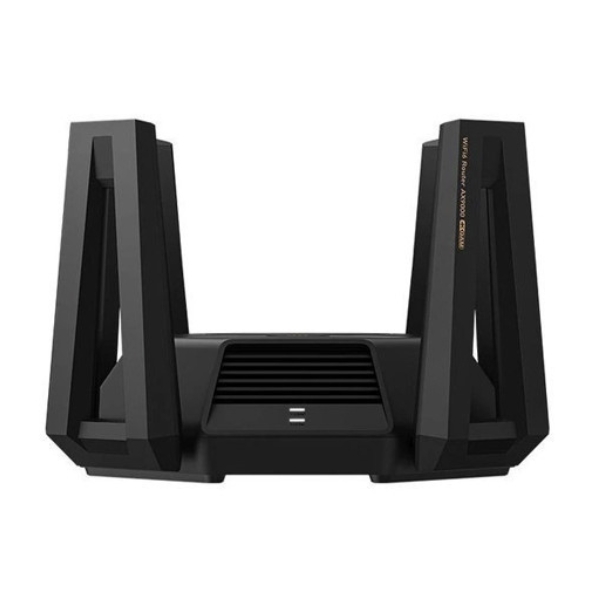

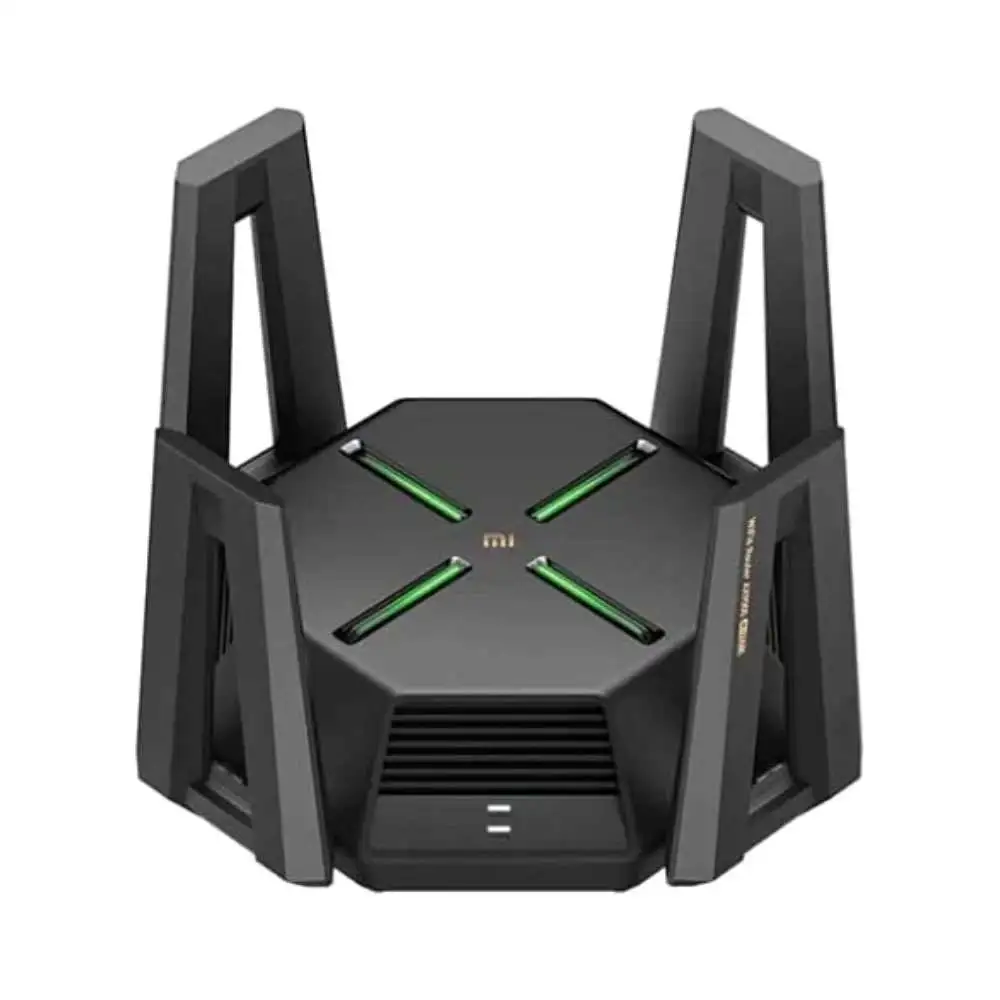

The Xiaomi Mi Router AX9000 is a high-performance, gaming-focused tri-band Wi‑Fi 6 router designed to deliver top-tier network speeds and coverage for demanding users. Powered by a robust Qualcomm® IPQ8072 chipset (quad-core 2.2 GHz CPU plus dual-core 1.7 GHz NPU) and 1 GB RAM, it supports up to ~9 Gbps total throughput across its 2.4 GHz and dual 5 GHz bands. With 12 high-gain external antennas, a dedicated 5 GHz “gaming” band, a 2.5 GbE port, USB‑3.0, advanced OFDMA/MU‑MIMO, active cooling, and customizable RGB lighting, the AX9000 is crafted for e‑sports, smart homes, and power users seeking stable, low‑latency connections.
Brand
Xiaomi
Color
Black
Wi-Fi Standard
Wi‑Fi 6 (IEEE 802.11ax) tri‑band
Mounting Options
Tabletop placement (no wall‑mount)
Frequency Bands
2.4 GHz: 4×4, up to 1148 Mbps, 5 GHz‑1: 4×4, up to 4804 Mbps, 5 GHz‑2 (gaming band): 4×4, up to 2402 Mbps
Network Ports

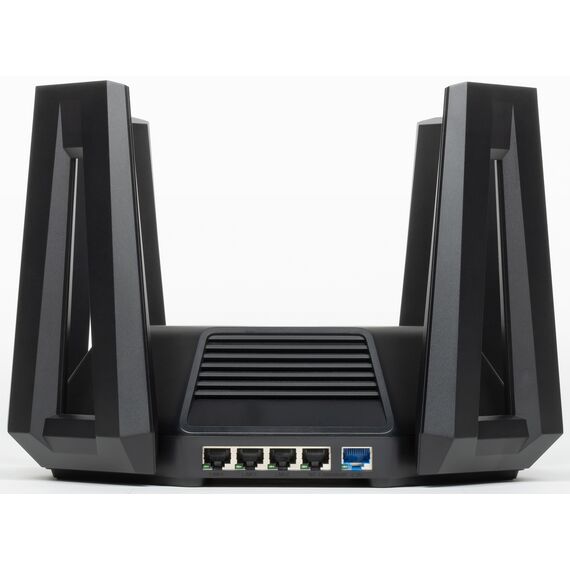

1× 2.5 GbE adaptive WAN/LAN, 1× 1 GbE adaptive WAN/LAN, 3× 1 GbE LAN, 1× USB 3.0
Power Support
12 V DC, 4 A power adapter
Antenna Type
12 external high‑gain antennas (each housing 3 radios) plus 1 AIoT internal antenna
Maximum User Capacity
Supports up to 248 devices (combined connection capacity)
Maximum Device Rate
2.4 GHz: up to 1148 Mbps, 5 GHz‑1: up to 4804 Mbps, 5 GHz‑2: up to 2402 Mbps, Total combined theoretical throughput: ~9000 Mbps
